Mine action with underwater wire-guided robots

Today, our worldwide seas would still be infested with some 300 000 remnant mines dropped during World War II. This is without mentioning the ones dropped during more recent conflicts. These bombs can still be active despite decades spent in seawater. They are real underwater threats that can damage, sink or completely destroy ships. That is why being able to detect and neutralize them is a major stake when navigating on potentially mined areas.

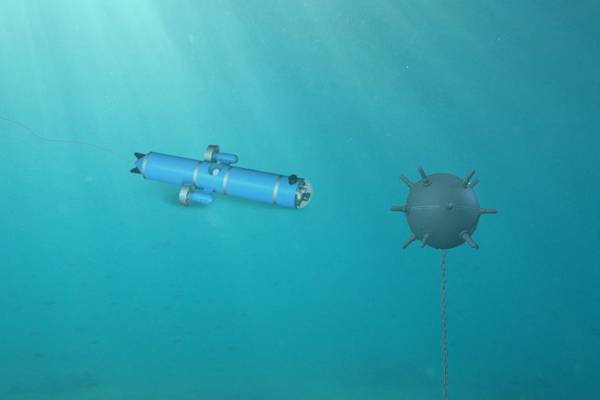

ROVs are tethered via an umbilical cable from the support vessel or unmanned surface vehicle (USV) which deploys them. This link allows the operator onboard a ship at a safe distance from the threat to remotely control and guide the ROV. The umbilical can transmit data in real-time in both directions (top-down orders and bottom-up measurements) in order to operate in the best conditions. Therefore, the ROV can safely approach the mine and eventually place an explosive charge near the mine to destroy it.

Most of USVs are equipped with an unwinding system stored on a winch to drag several hundred meters of umbilical cable with a large diameter of around 15 mm. It requires a significant energy source to power the system. It also implies the addition of a costly rotating joint (revolving joint/rotary seal/slip ring). Besides, the drag of the umbilical cable in strong currents has a high impact on the hydrodynamic behavior of the ROV. This “traditional” solution results in a cumbersome, heavy, costly, and inefficient cable.

With the development of unmanned underwater remotely operated vehicles (ROVs), it is now possible to perform mine-hunting and mine-neutralization without exposing humans to danger. Indeed, the whole operation is supervised by an operator located onboard a ship far from the danger zone or on land.

The mine-action crew sends naval robots in the minefield from specialist vessels or from land. These seagoing robots can be either autonomous underwater vehicles (AUV) or unmanned surface vehicles (USV). They are remotely guided by a radio link from the ship or from land. Their first mission is to detect and classify mines. In order to identify and neutralize mines, these robots, especially USVs, deploy other robots that are remotely operated vehicles (ROV) for inspection and combat missions.

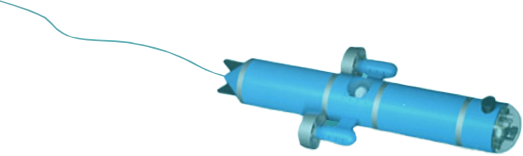

To overcome these problems, SEDI-ATI has designed a range of disposable and lightweight fiber optic spools for tethered vehicles. The spool also called “tape”, is directly mounted onto the ROV. Hence, it is the ROV that deploys the optical cable, and no more the USV. Therefore, there is no traction nor any other mechanical force applied to the optical fiber. As a result, we can propose fiber optic spools at lower costs, in smallest versions, and more efficient in depths and in currents than “traditional” umbilical cables.

SEDI-ATI fiber optic spools for tethered vehicles are composed of a very compact and light package in which is included a precision wound untwisted 250 µm optical fiber allowing long-distance deployment up to 20 km. The fiber can be reinforced with a 350 µm coating for optimum resistance allowing higher speed payout. The deployable side of the spool is equipped with a connector to be connected to the control station on the USV, and the opposite fiber end is pigtailed with a 1.8 mm standard jacket to be connected to an hermetic feedthrough on the ROV. And of course, we can design tapes with different optical fiber lengths, depending on the mission.

Another significant advantage of our solution is that the optical cable can be dumped into the sea, allowing to shorten the minefield clearance missions since there is no more need to rewind the cable.
