Design of optical fiber assemblies for spectroscopy
Fiber-optic bundles are perfectly adapted to perform diffuse reflectance spectroscopic measurements.
KeyFeatures
- Customer-specific designs,
- Fibers with core diameters from 50 μm to 1000 μm,
- Broad spectral ranges: UV-VIS or VIS-IR,
- End configurations: round, square, linear or other geometry,
- Fan-out: single or multi-fibers per leg,
- Array: matches the entrance slit of a spectrometer or monochromator,
- Mapping: random or coherent,

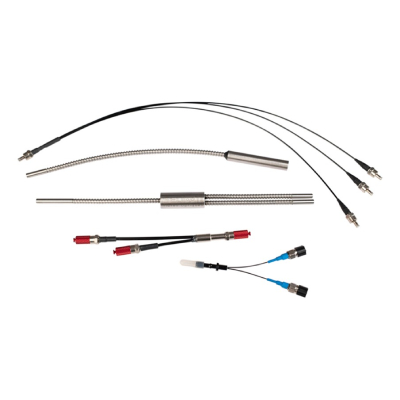

Fiber optic bundles usually consist of optical fibers in a round or linear configuration combined in a hand-piece or in an SMA905 connector to match the entrance slit of most spectrometers.
These assemblies are ideal for reflectance spectroscopy and fluorescence spectroscopy. They can also be used with monochromators.
This is a 100% customizable component: fiber types, number of fibers, detection geometry (round, square or any geometry), end configuration (hand piece, SMA connector…), mapping of the fibers (random or coherent)… Everything is possible!
Cases studies
CO2M: Measuring Carbon Dioxide levels in the atmosphere
SEDI-ATI took part in the project by supplying specific patchcords, fiber-optic bundles, and feedthroughs with our FCXtreme® connector, a compact FC connector for defense and aerospace applications.
Inspect: online and remote dosimetry for inspecting nuclear equipment
SEDI-ATI took part in the INSPECT project by supplying a bundle of 16-channel optical fibers for instrumentation to measure the level of radioactivity in nuclear equipments.
Real-time detection of contaminants in drinking water using scintillating fibers
SEDI-ATI has developed a bundle of scintillating plastic optical fibers to do real-time detection of nuclear contaminants in drinking water.
WEAVE: the multi-fiber spectrograph new generation that will unravel great mysteries of the Universe
SEDI-ATI has participated in the design of the LIFU and one MOS by the design, the setting up of manufacturing processes and the assembly of fibered sets.
GIRAFFE : the VLT multi-fiber spectrograph revealing the birth of galaxies
SEDI-ATI is specialized in complex assemblies of a high number of fibers for large instruments.
MOONS: the Multi-Object Optical and NIR Spectrograph of the VLT, fed with a thousand optical fibers!
SEDI-ATI has delivered 64 slitlets of 16 optical fibers each, to form 2 identical slits of 512 fibers, aimed at transporting the light of celestial.
Blood analysis with optical fiber assemblies
SEDI-ATI designs customer-specific fiber assembly slutions for blood analysis applications using fluorescence spectroscopy.
Optical measurement of the water level in nuclear reactor pools
SEDI-ATI offers nuclearized fiber-optic assemblies that perform optical time-of-flight measurement of the water level of nuclear reactor pools.
Fiber-optic probes at the heart of the Jules Horowitz Reactor
SEDI-ATI has designed custom-made fiber-optic probes to be placed at multiple locations inside the Jules Horowitz Reactor.
Monitoring of insulated electrical transformers using fiber optic assemblies
SEDI-ATI has developed built-in fiber optic assemblies consisting of a dielectric multi-fiber optic cable integrated in an inline hermetic feedthrough.
