The FCXtreme® connector is a high-performance versatile, and compact FC-type connector, designed for defense and aerospace applications.
Fiber opticConnector
Fibre optic connector production
The FCXtreme® connector is a high-performance versatile, and compact FC-type connector, designed for defense and aerospace applications.
KeyFeatures
- FC J.I.S. compatible,
- Ruggedized,
- Versatile,
- Compact,
- Zero outgassing materials,
- PC or APC polish,
- PM, SM, or MM fibers up to 1000 μm core diameter,
- Resistant to corrosion,
- Vacuum compatible,
- Qualifications: seismic, shocks, vibrations, dynamic variations of the temperature from -55 °C to +125 °C,
Optical fibre connector for extreme environments
Fully compatible with the FC J.I.S. standard, the FCXtreme® connector shows outstanding performances in harsh environments. So far it has been qualified for operation under shocks and vibration conditions as well as under dynamic variations of the temperature from -55 °C to +125 °C, without affecting its performance. It has also successfully passed the test requirements for seismic qualification without affecting its performance. Therefore SEDI-ATI can guarantee variations of less than 1 dB in insertion loss. Besides, the FCXtreme® connector is resistant to corrosive and vacuum environments.
A compact fiber optic connector for defense applications
Its dimensions have been studied to meet the best solution in terms of bulk. Indeed, it is rather short with its 31 mm length and has an outer diameter smaller than 10 mm. As a result, it is smaller than conventional FC connectors, which opens up new perspectives of usage.
A robust and versatile design

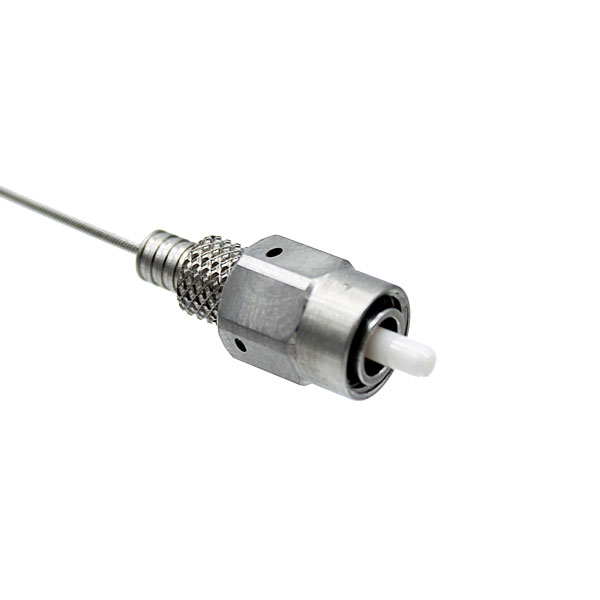

The FCXtreme® connector is composed of stainless steel materials and is available with either ceramic or metallic FC/PC and FC/APC ferrules. Hence, it is suitable for either low-outgassing or high-temperature applications. Besides, its smart design accepts all types of single-mode and multimode fibers. Furthermore, it can be mounted with any optical fiber protection including peek and metal tubing from 900 µm to 2.3 mm in diameter. Last but not least, this connector exhibits a hexagonal nut to ensure a controlled tight connection. And it can be secured by a wrapping wire to withstand strong vibrations and shocks.
Towards the future
SEDI-ATI is currently conducting further in-depth qualifications in terms of resistance to extreme environments. The FCXtreme® connector shall pass a salt-spray test. Undergoing stringent tests are also being led in nuclear, and geophysics conditions up to +200°C. Finally, step-by-step testing and improvements are planned to progressively address applications up to +600°C.
Important notice: the connectors of fiber optic are an integral part of our products and cannot be sold separately.
