Injecting high optical power into a fiber is quite tough. That is why SEDI-ATI has designed a broad range of power fiber optic cables.
Fibre opticCables
Conception of power over fiber
Injecting high optical power into a fiber is quite tough. That is why SEDI-ATI has designed a broad range of power fiber optic cables.
Keyfeatures
- Fiber type: multimode from 100 to 1000 µm core diameter,
- Jacket: stainless steel or stainless steel + PVC,
- Ferrule: stainless-steel,
- Numerical aperture: 0.22, 0.37 or 0.43 depending on the fiber,
- Spectral range: UV/VIS or VIS/NIR depending on the fiber,
- Connectors: SMA free-standing,
- Fiber/connector seal: brazing,
- Temperature range: -50 °C + 130 °C depending on the fiber and the coating.

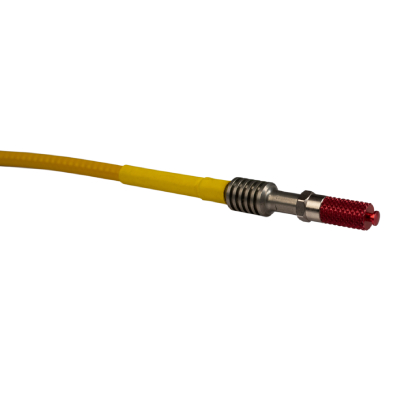

Therefore, we offer appropriate power fiber optic cables with patch cords and connectors designed for high-power delivery applications:
- High-power connectors, large core all silica fibers,
- High-power laser delivery assembly,
- Copper materials used to improve thermal dissipation,
- Epoxy free in the injection area,
- Large free space around the fiber (more than 2 mm),
- Fibers cleaved (100 μm up to 1000 μm),
- AR coating option,
Indeed, a poor alignment, a poor focus, or a bad spot quality can quickly destroy the optical fiber or its connector. Consequently, standard connectors and assemblies are not appropriate for such applications.
